Harken Unit 1 Carbo Foil Set — 16 m
Part No. 7001.16M
| Reviews | |
| Delivery time to | 30 days |
| Shipping price | 0 |
| The bar code | |
| EAN |
Zamówienie telefoniczne: +48-517-260-626

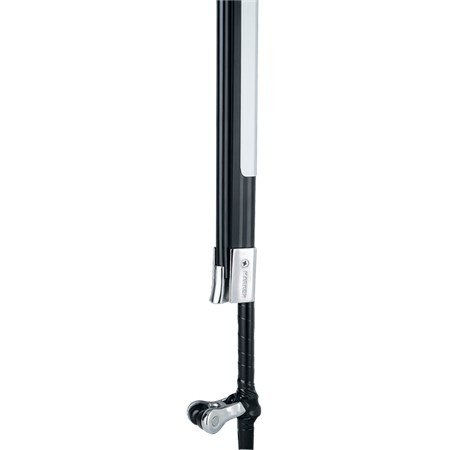

The low-friction twin headsail grooves are ultra-smooth, allowing hoists, douses, and headsail changes to be easily and efficiently executed. The engineering resins in these strong, lightweight head foils offer significant advancements over the weaker PVC materials used by other manufacturers. Impact resistance is unmatched, with far less foil damage from loaded spinnaker poles, especially in cold weather. Heat has little effect on stiffness.
Maximum wire Ø (mm) 8 mm
Maximum wire Ø (in) 5/16 in
Maximum rod Ø (mm) 8.38 mm
Maximum rod Ø (dash) -17 dash
Extrusion length (m) 16 m
Extrusion length (ft in) 52' 6" ft in
Maximum headstay length (m) 17.2 m
Maximum headstay length (ft in) 56' 5" ft in
Spacer tube length (m) 1 m
Spacer tube length (ft in) 3' 3" ft in
Extrusion weight (kg/m) 0.241 kg/m
Extrusion weight (lb/ft) 0.162 lb/ft
Full system weight (kg) 4.14 kg
Full system weight (lb) 9.13 lb
Luff tape size (mm) 5 mm
Luff tape size (in) #6 (6/32) in
Safety Information
Use
The Harken cover is a sailing rigging component designed to be placed on the forestay to enable the safe introduction of the genoa into the spar slot. The product is intended exclusively for use in sailing, in accordance with the manufacturer's instructions.
Precautions
Use according to the manufacturer's instructions: Refer to the product sheet for detailed information on specifications and installation and usage recommendations. Avoid overloading: The cover is not designed for use under conditions that could lead to excessive tension on the forestay. Follow the manufacturer's recommendations regarding maximum load. Body protection: When installing or removing the cover, it is recommended to wear protective gloves to avoid abrasions and injuries. Regular inspection: Before each use, check the technical condition of the cover, ensuring that it has no damage, cracks, or other defects that could affect its safe use.
Storage
Before installation, store the cover in a dry, cool place, away from heat and moisture sources, to ensure its longevity. Store it in a way that prevents mechanical damage, such as in a dedicated bag or cover.
Do not install after the declared service life has expired.
Full information on specifications and usage can be found in the product sheet.
