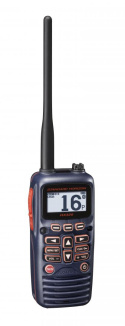

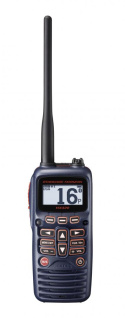

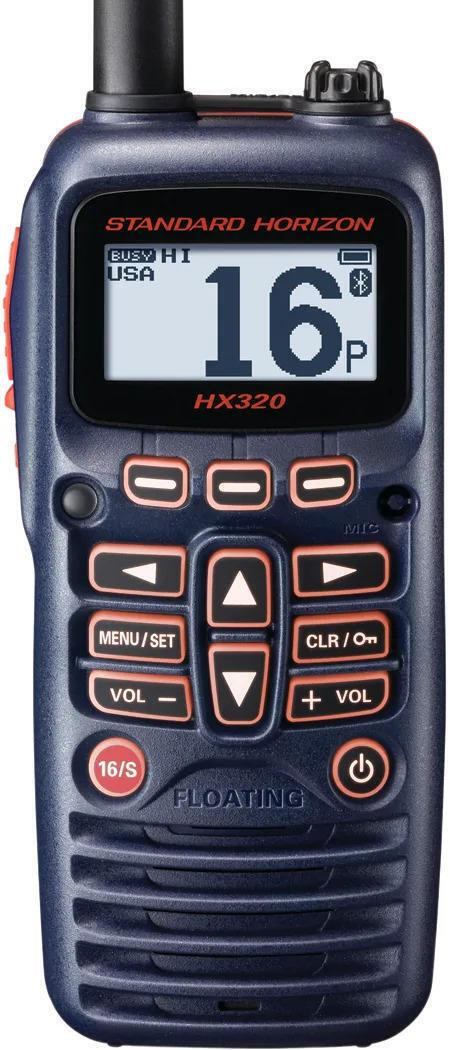

Standard Horizon HX320E Floating Handheld Radio
Reviews | |
Shipping within | 24 hours |
Shipping price | 0 |
The bar code | |
EAN |
Zamówienie telefoniczne: +48-517-260-626
Small size, lightweight, hands-free operation with the possibility of using a walkie-talkie - utilizing Bluetooth technology, and a high-capacity built-in 2100mAh lithium-polymer battery.
The walkie-talkie features a construction meeting IPX7 waterproofing standards (1 meter depth for 30 minutes).
Basic features and functions:

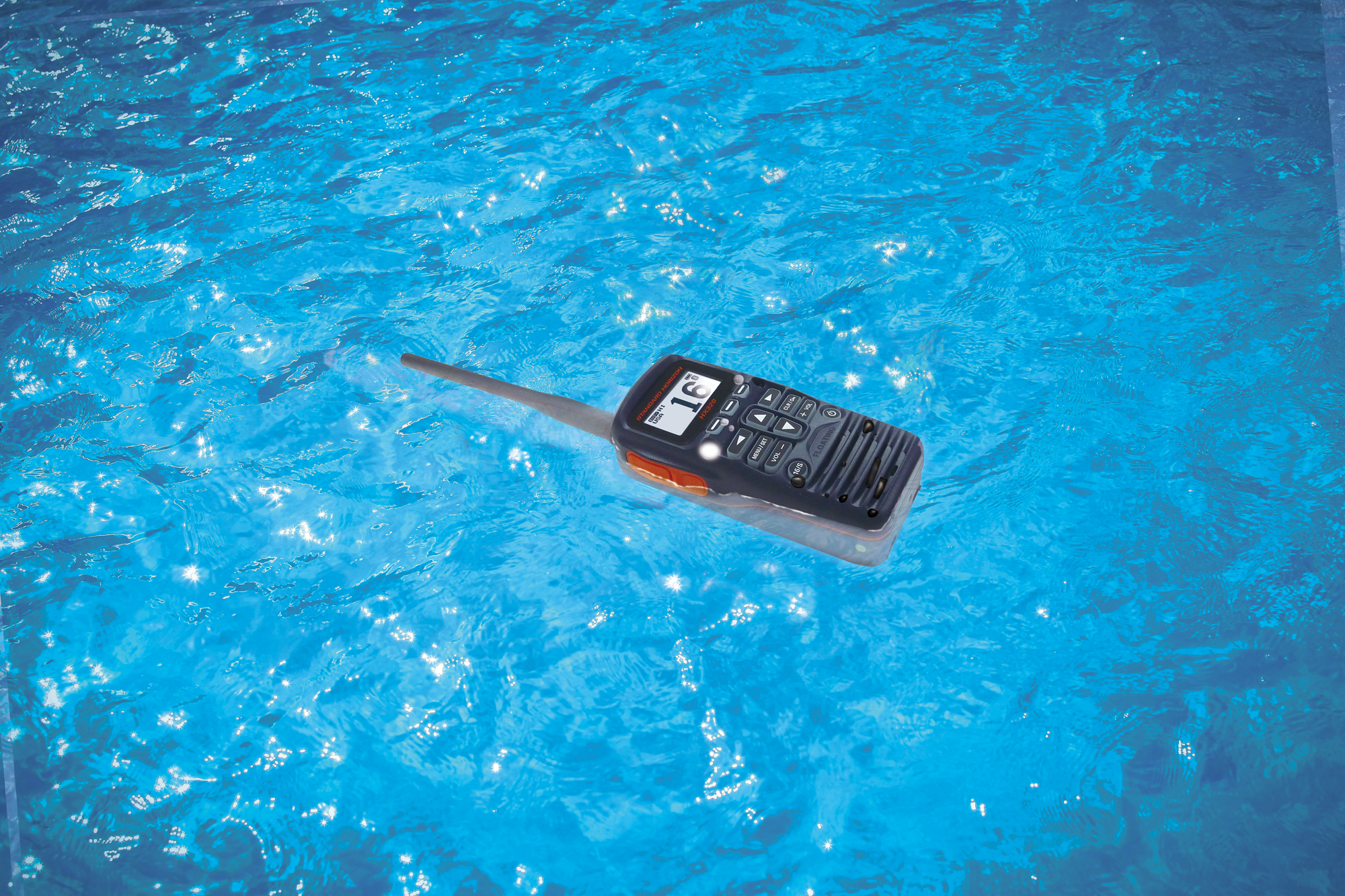

- Floating HX320E walkie-talkie on the water's surface.
- Waterproof construction meeting IPX7 standards (1m for 30 minutes).
- 6 Watts of transmitting power, with options for 2.5W or 1W.
- Unique battery charging via USB Type-C connector. The HX-320 walkie-talkie's battery can be charged using the included USB-AC adapter or another charger.
- E2O (Easy To Operate) - easy and intuitive menu operation.
- Volume and noise block indicator on the display.
- Strobe light activated upon contact with water, regardless of whether the radio is on or off. Water activates a white strobe light to facilitate locating the radio in low-light conditions.
- Bluetooth technology - HX-320 allows wireless Bluetooth operation with the optional Yaesu SSM-BT10 headset.
- Programmable button for accessing 10 channels (maximum).
- Built-in 700mW audio power speaker.
- Programmable scanning, priority scanning, dual and triple watch.
- 2100mAh built-in lithium-polymer battery, providing approximately 17 hours of radio operation (in TX: 5s, RX: 5s, standby - 90s, setting: TX High power, Bluetooth off) in a cycle.
- Quick access to channels [16/S]. Emergency channel 16 is accessible in the fastest way - simply press the [16/S] button.
- Built-in FM radio receiver.
Optional equipment:
- SSM-21A - waterproof microphone/speaker with a headphone jack.
- MH-73A4B - waterproof microphone/speaker.
- SSM-17H - microphone/speaker.
- SSM-BT10 - Bluetooth headset.
- SSM-64A - VOX headset.
- SSM-517A - microphone/headset.
- SEP-10A - headset for SSM-21A.
- SRA-19B* - antenna.
- SBH-49* - charging base.
- SAD-27* - USB AC adapter.
- USB cable* - USB Type A/USB Type C power cable.
- CLIP-22* - clip.
- SCH-11 - clip hanger.
- SHB-110 - quick-release bracket.
- CN-3 - SMA to BNC antenna adapter.
HX320E Specifications:
General:
- Frequency range:
- Transmitter: 156.025 MHz - 161.600 MHz.
- Receiver: 156.050 MHz - 163.275 MHz.
- Channel spacing: 25 kHz.
- Frequency stability: ±3 ppm (-20ºC to +60ºC).
- Emission type: 16K0G3E.
- Antenna impedance: 50 Ω.
- Power voltage: 7.4 V DC.
- Current consumption:
- Receive: 330 mA.
- Standby: 100 mA.
- TX: 1.6 A / 1.0 A / 0.7 A (TX: 6 W* / 2.5 W / 1 W).
- Operating temperature: -20ºC to +60ºC.
- Waterproof rating: IPX7 (1m for 30 minutes).
- Dimensions (W x H x D): 60 x 133 x 42 mm without knobs and antenna.
- Weight (approx.): 290 g with strap, clip, and antenna.
Transmitter:
- RF output power: 6 W* / 2.5 W / 1 W (@ 7.4 V).
- Modulation type: variable reactance.
- Maximum deviation: ±5 kHz.
- Spurious emissions: below 0.25 μW.
- Microphone impedance: 2 kΩ.
Receiver:
- Circuit type: single superheterodyne.
- Adjacent channel selectivity: 70 dB typical.
- Intermodulation level: 68 dB typical.
- Signal-to-noise ratio: 40 dB typical.
- Sensitivity: 0.25 μV 12 dB SINAD (US), -5 dBμ 20 dB SINAD (EXP).
- Selectivity: 12 kHz / 25 kHz (-6 dB / -60 dB).
- AF output (internal speaker): 700 mW @ 16Ω for 10% THD (@ 7.4 V).
FM Radio Receiver:
- Frequency: 65 MHz - 108 MHz.
- Frequency step: 100 kHz.
- Sensitivity: 1.0 μV for 12 dB SINAD.
* 5W TX power requirement in some countries.
The package includes:
- HX320E - transceiver unit.
- SRA-19B - VHF marine antenna.
- SAD-27 - USB AC adapter.
- SBH-49 - charging base.
- USB charging cable (Type A to Type C).
- CLIP-22 strap clip.
- Wrist strap.
- User manual in Polish and English.
Safety Information
Safety Instructions for Radios
Safety Guidelines
Proper Use
Radios are intended for communication in difficult conditions, such as on water, during sailing, or on ships. They should be used solely for communication purposes, emergency situations, and daily contact with other units.
Ensure that the radio is always adequately charged or powered to ensure full functionality in emergency situations.
Never use the radio in a way that could interfere with other electronic devices or communication systems. Follow the applicable regulations regarding radio frequencies.
Safe Usage
Always keep the radio in a dry, safe place to prevent damage from water, dust, or shocks.
Use the device according to the user manual and ensure that you understand its functions, including how to transmit and receive messages.
If needed, use the SOS function or any other alarm feature if available on your radio model.
Regular Inspection Before Use
Technical Inspection
Before each use, check that the radio is functioning properly. Pay attention to:
Battery or power status – make sure the batteries are adequately charged or replaced to ensure proper device operation.
Antenna – ensure the antenna is functional and securely attached to ensure good signal quality.
Buttons and knobs – check that all control elements are functioning properly and that the display is readable.
Device housing – make sure the radio is free from cracks or other damages that could affect its performance or safety.
Testing Before Use
Regularly test the radio to ensure it can properly receive and transmit signals. Check range and transmission quality in different conditions.
Cleaning and Maintenance
Cleaning
After each use of the radio, especially in harsh conditions such as seawater or rain, wipe the device with a damp cloth to remove salt, dust, and contaminants.
Avoid using harsh chemicals that could damage the radio's housing.
Storage
Store the radio in a dry place, away from moisture and heat sources. Always ensure that it is stored in a location that provides easy access in emergencies.
If the device is equipped with a battery, remember to regularly charge or replace it to prevent it from draining or being damaged.
Emergency Situations
Communication in Crisis Situations
In an emergency, use the radio to call for help. Use the appropriate emergency frequencies (e.g., 156.8 MHz for VHF) and follow communication procedures. If necessary, use the SOS function or other alarms available on your device.
Transmit clear and concise information, such as your location, the nature of the problem, and the condition of the crew or passengers.
Device Failure
If the radio stops working during use, check the battery status, ensure the device is turned on, and check that the antenna is not damaged.
In case of serious malfunction, immediately remove the device from use and contact the manufacturer's service.
Contact in Case of Problems
If you notice manufacturing defects or damage to the radio, contact the manufacturer or point of sale to report the issue and get assistance. Do not modify the device yourself to avoid worsening its performance.
