• Ropeye Ucho pokładowe loop60mm fi 6mm

The Symbol : 4744714010271

LOOP 60-6

No goods
269.90
The loyalty program is only available for logged in customers.
Enter your email
Shipping within 24 hours
Shipping price 60
Odbiór osobisty 0
UE shipping 60
Oversize 60

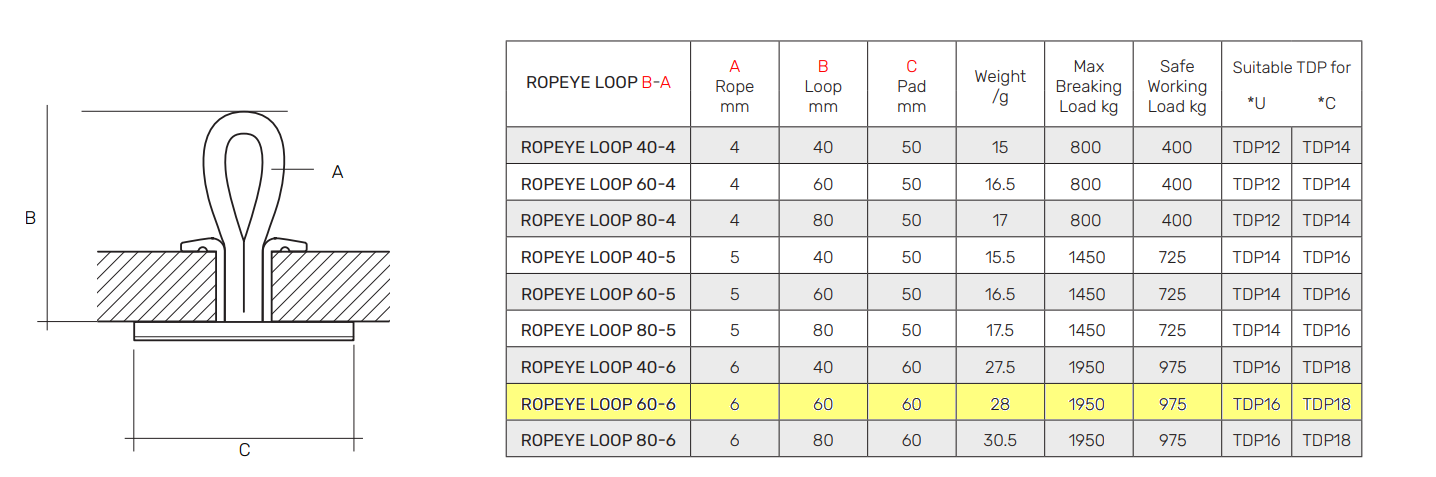

The latest generation of ROPEYE deck rigging components

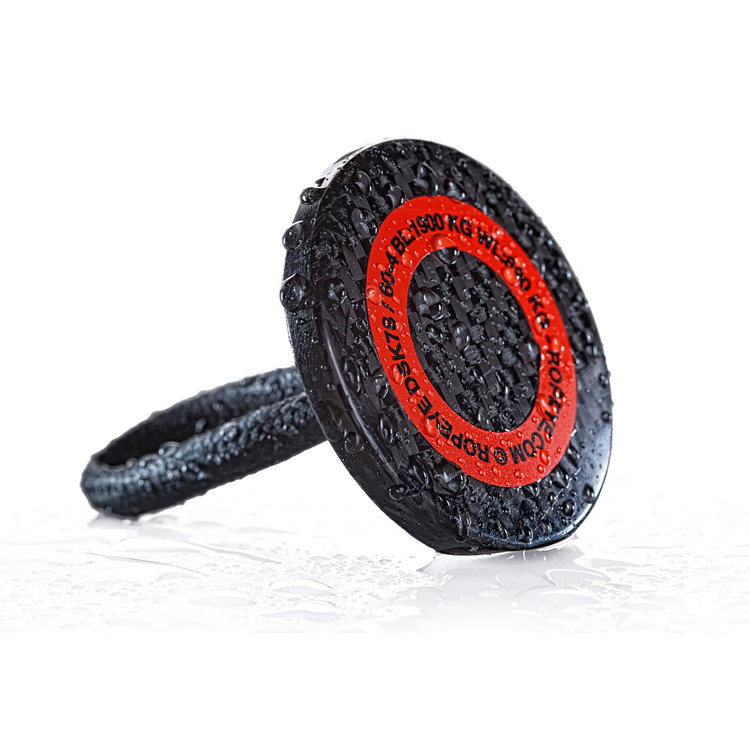

Ropeye Loops are good for deck attachments where loading angles are close to 90 degrees. They can also be used as stick-on attachments.

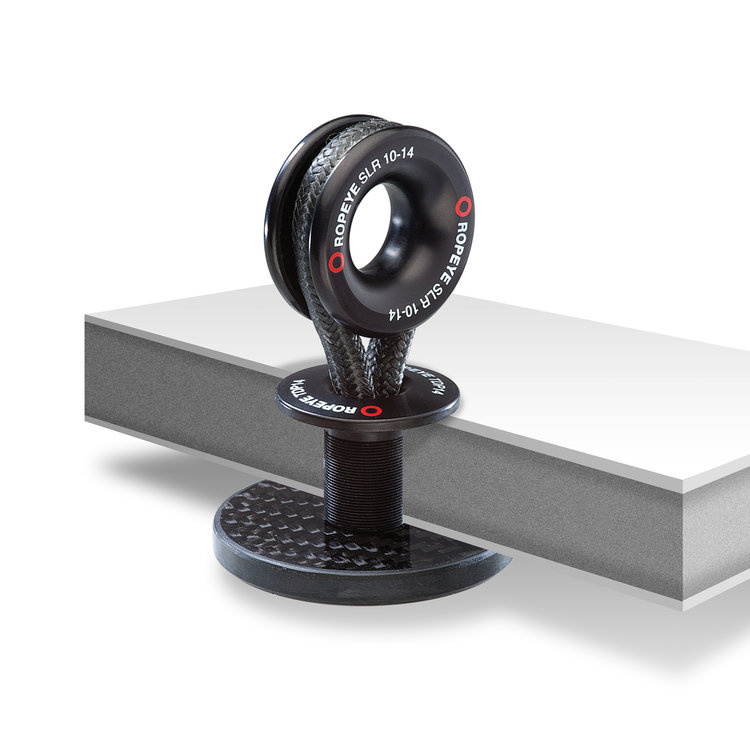

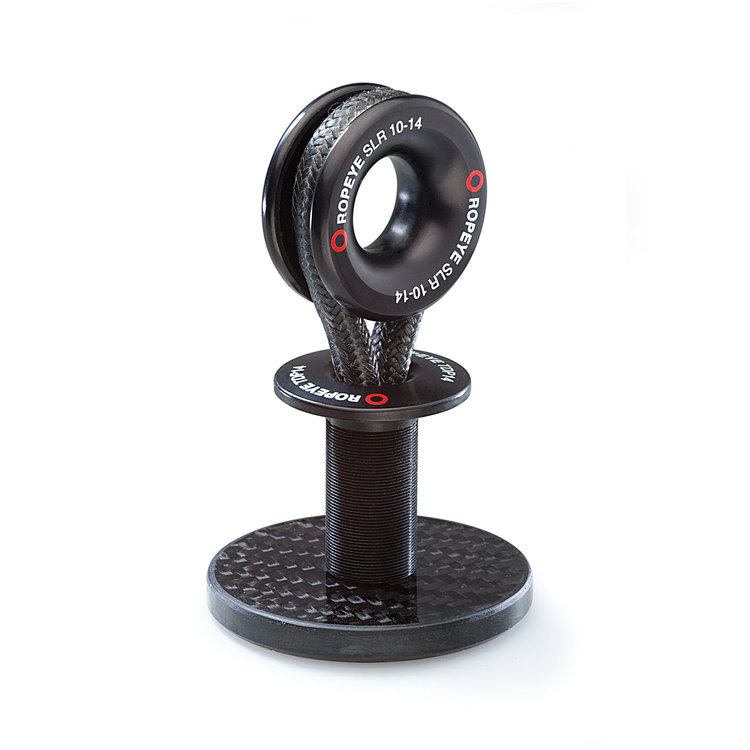

Ropeye TDP and SLR are required for correct installation but sold separately.

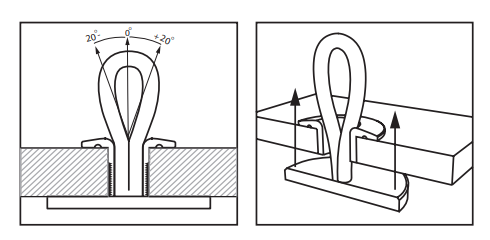

Ropeye Loop is designed for vertical loads with maximum loading angle of 20 degrees.

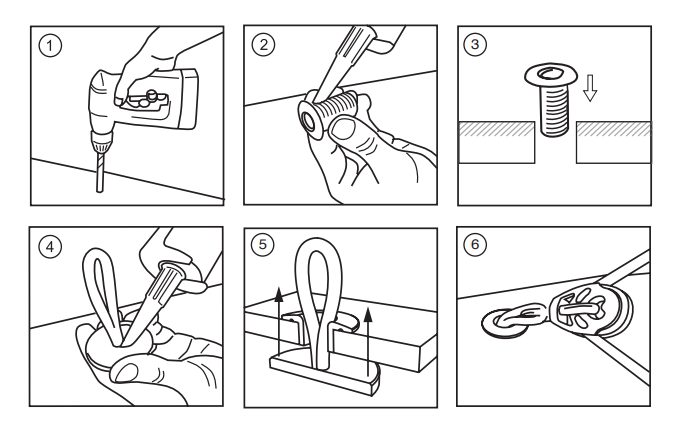

INSTALLATION:


Drill a hole for the TDP. Clean the installation area with acetone to remove dust and grease. Apply Sikaflex 291i or other adhesive to make the installation watertight. Apply pressure to the product to secure it to the installation area. Attach the SLR to the loop. Wait 24 hours before putting any load on the product.



ATTENTION

- DRILL THE INSTALLATION HOLE THE RIGHT SIZE

- LOOPS MUST ALWAYS BE USED WITH A TDP

- SLR USAGE IS RECOMMENDED TO AVOID PREMATURE WEAR OF THE LOOP

- REGULARLY EXAMINE THE LOOP FOR SIGNS OF DAMAGE

- DAMAGED LOOPS ARE UNSAFE AND MUST BE REPLACED

- DO NOT EXCEED SAFE WORKING LOAD



IF YOU NEED ANY HELP ON INSTALLATION SEND AN EMAIL TO: SALES@ROPEYE.COM ROPEYE

PRODUCTS HAVE A 2 YEAR WARRANTYimage
