• ICOM Radiotelefon ręczny M25EURO

The Symbol : IC-M25EURO

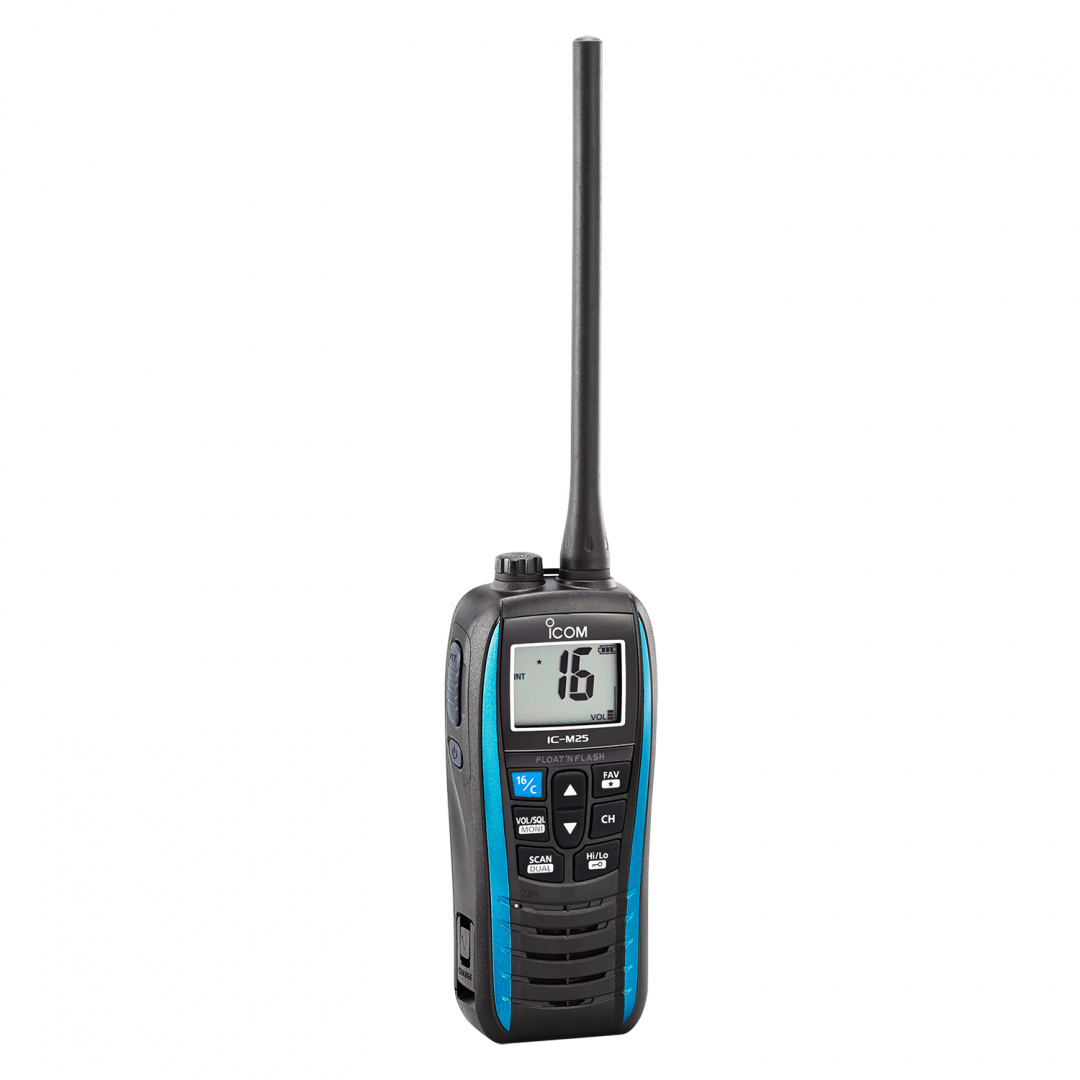

IC-M25EURO

No goods
1029.90
The loyalty program is only available for logged in customers.
Enter your email
Shipping within 24 hours
Shipping price 60
Odbiór osobisty 0
UE shipping 60
Oversize 60

Features:

- Slim, lightweight with high performance

The IC-M25EURO has the slimmest (depth:30.5 mm) and lightest (218 g) body as a floating marine transceiver*. It also delivers uncompromised performance that will exceed expectations.



- Large LCD and intuitive user interface USB charging (Micro-B USB type)

The IC-M25EURO’s LCD is 30% larger than its predecessor, the IC-M23 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.

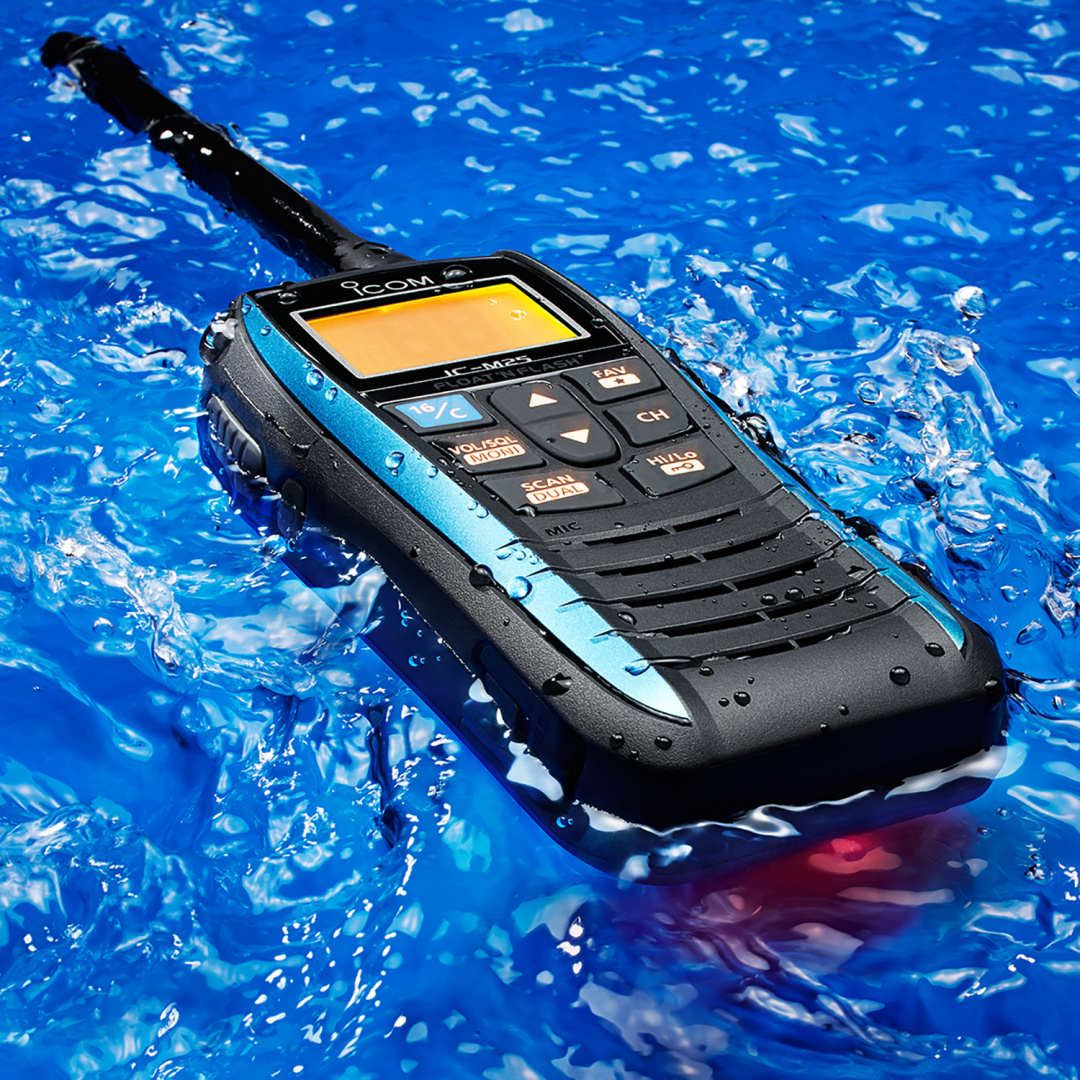

- Float’n Flash function

The IC-M25EURO floats and lets you know where it is with the flashing red LED light and LCD/key backlight.


- 11 hours of long operating time

The built-in 1500 mAh lithium-ion battery allows 11 hours (approx.) of long operation*.

* Typical operation with Tx (Hi): Rx: standby=5:5:90


- 5 W RF output, 550 mW clear audio

The IC-M25EURO provides a powerful 550mW (typical) audio output and received voice can be heard loud and clear.


- IPX7 waterproof protection




Other Features

・    IPX7 waterproof construction
       (1 m depth of water for 30 minutes)
・    4-step battery life indicator
・    Dual/Tri-watch functions*
・    Instant access to Ch 16 or programmable call channel
・    Favorite channel function
・    Monitor function opens noise squelch
・    Auto scan function*
・    LCD auto backlighting
・    AquaQuake™ draining function
・    Supports 4-digit channels

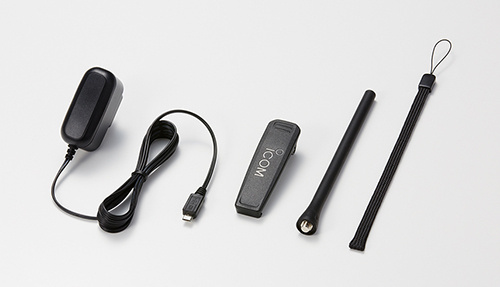

Supplied accessories:

  •  Belt clip, MB-133

・    Antenna, FA-SC59V

・    Hand strap

・    Battery is built-in



General

IC-M25EURO IC-M25EURO
AUS version
Frequency range Tx 156.000–161.450 MHz 156.025–157.425 MHz
Rx 156.000–163.425 MHz 156.300–162.000 MHz
Usable channel groups INT, USA*, ATIS* channels
* Depending on version
INT, USA, WX channels
Type of emission 16K0G3E (FM)
Power supply voltage 3.7 V DC nominal
Current drain Tx 2.3 A
Rx (Internal SP/External SP) 300 mA/200 mA (Max. audio)
Operating temperature range –15°C to +55°C –10°C to +55°C
Antenna impedance 50 Ω
Dimensions (W×H×D)
(Projections not included)
56.6×134.2×30.5 mm
Weight (approximately) 220 g
(With FA-SC59V and MB-133)

Transmitter

IC-M25EURO IC-M25EURO
AUS version
Output power 5 W (approx.)/1 W/0.5 W*
* For only FRG version
5 W (approx.)/1 W
Max. frequency deviation ±5.0 kHz
Frequency stability ±1.5 kHz ±10 ppm
Spurious emissions 0.25 μW 0.25 μW typ.
Adjacent channel power 70 dB
Residual modulation 40 dB

Receiver

IC-M25EURO IC-M25EURO
AUS version
Sensitivity –6 dBμ emf typ. (at 20 dB SINAD)
Squelch sensitivity –6 dBμ emf typ. (at threshold)
Adjacent channel selectivity 70 dB 65 dB
Spurious response 70 dB 65 dB
Intermodulation 68 dB 65 dB
Audio output power
(at 10% distortion)
Internal SP 550 mW typ. (12 Ω load, at 1 kHz)
External SP 200 mW (4 Ω load)

Measurements made in accordance with EN301-178 (IC-M25EURO) and AS/NZS 4415.2-2003 (IC-M25EURO AUS Version).
All stated specifications are subject to change without notice or obligation.
